D3-DA Serisi Dsl Sürücü Ünitesi

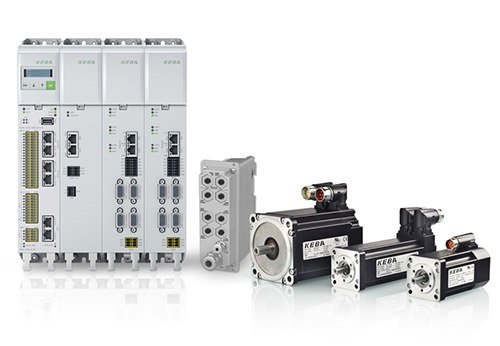

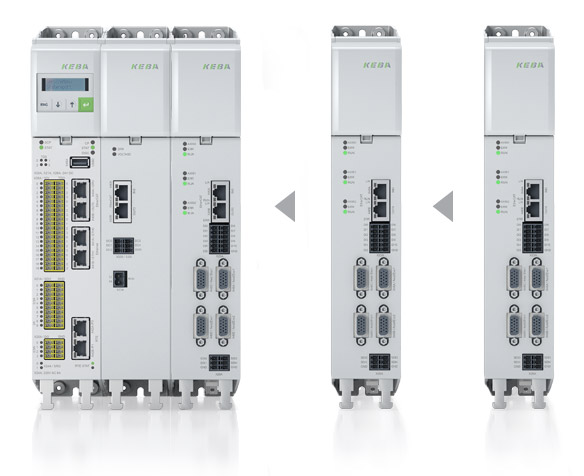

Keba D3-DA Serisi Dsl Sürücü Ünitesi

• Control voltage: 24 V DC ±10 %
• Control voltage on usage of a motor holding brake with cable length < 50 m: 24 V DC -5 % / +10 %
• Inrush current: max. 1.8 A
• Current consumption (without fan, motor brake or encoder):
• ● D3-DA 310/x: 0.5 A
• ● D3-DA 320/x: 0.7 A
• ● D3-DA 330/x: 0.9 A
• Current output brake driver:
• ● D3-DA 310/x: max. 2 A
• ● D3-DA 320/x: max. 2 x 2 A
• ● D3-DA 330/x: max. 3 x 2 A
• Current consumption fan: 400 mA
